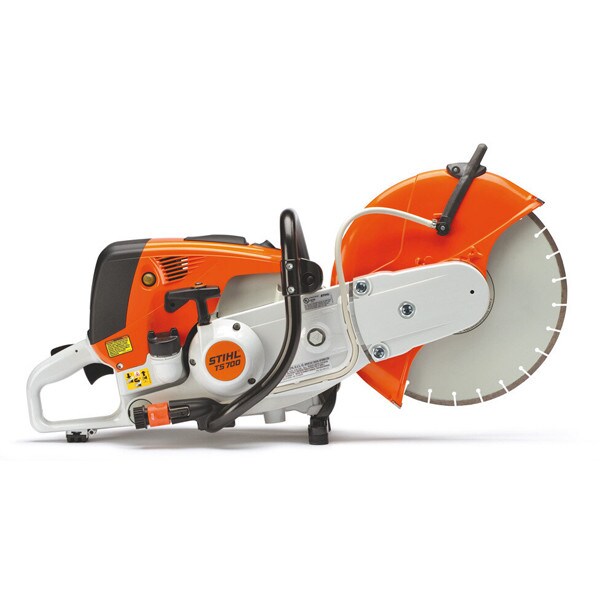

Stihl TS700 14" Cutquik® Cut-Off Concrete Saw
With the X2 Long-Term Filtration System, this machine is designed for extended service cutting.
The Stihl TS 700 14" Cutquik® Concrete Saw is a lightweight, powerful, and compact heavy-duty cut-off machine. Equipped with a 14” cutting wheel and features both a 5-point vibration system and an X2 air filtration system. The TS 700 also has increased fuel efficiency and reduced emissions. Perfect for the concrete, steel, asphalt, and brick cutting professional. Designed for superior handling during the toughest jobs, this machine features a powerful, high-speed engine, large fuel capacity, a five-point dual element vibration control system built right into the handle and a semi-automatic belt tensioner with an innovative ribbed belt. Its X2 filtration system is low maintenance and cleans airflow with nearly 100 percent efficiency, reducing downtime for filter maintenance. Each component on this machine was meticulously engineered with demanding professionals in mind.
Key Features
- The decompression valve reduces the compression in the combustion chamber during cranking and helps reduce the effort needed to pull the starter rope.
- Reduced-Emission Engine Technology - Caring for Nature - The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
- Intellicarb™ Compensating Carburator - The IntelliCarb™ Compensating Carburetor is designed to automatically adjust the air/fuel ratio when the air filter becomes restricted or partially clogged and maintains the engine’s correct RPM. IntelliCarb™ uses air from the clean side of the air filter to control the diaphragm and flow of fuel. As the air filter becomes dirty and less air is available for the carburetor, the IntelliCarb™ system adjusts the fuel flow to compensate for the decrease in air flow. This is in contrast to typical carburetors that utilize this air from the “dirty” side of the air box.
- X2 Air Filtration System - The X2 Air Filtration System revolutionizes the cut-off machine industry by allowing air filters to last up to a year, based on cutting conditions. Outside air enters the system in a swirling motion, removing 80% of dust particles. This pre-cleaned air is then routed through the primary and secondary air filters before being sent into the engine. The X2 Air Filtration System is virtually maintenance free and maintains an incredible 99.96% cleaning efficiency.
- Stihl Elastostart™ - The ElastoStart™ starter handle is a feature of STIHL. It is a starting grip with a built-in shock absorber that helps reduce the effort when pulling on the starter cord. The ElastoStart™ starter grip noticeably reduces the sudden peak forces (compression) normally felt during cranking. The forces which occur at the grip after the first compression stroke are smoothed out.
- Bayonete-Style Filler Cap - Includes reatiner for easy use, even with gloves on.
- Anti Vibration System - STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
- Semi-Automatic Belt Tensioning - With consistent semi-automatic re-tensioning, this feature increases the service life of the belts and shaft bearings.
- Ergonomic Grip - The ergonomic top-handle bar design provides an optimal comfortable grip in any working position.
Key Specifications
Power Source | Gas |
Maximum Cutting Depth | 4.9" |
Maximum Blade Diameter | 14" |
Weight | 25.6 lbs |
Why Choose the Stihl TS700?
With the X2 Long-Term Filtration System, this machine is designed for extended service cutting.
Key Takeaways
X2 Air Filtration System | Stihl Elastostart |
Intellicarb Compensating Carburator | Anti-Vibration System |
Ergonomic Grip | Semi-Automatic Belt Tensioning |
For more information on Stihl equipment visit www.stihlusa.com/information.
PRODUCT SPECS | |
---|---|
Power | 6.7 HP |
Weight | 25.6 lbs |
Max Blade Size | 14" |
Max Spindle Speed | 5,350 RPM |
Max Cutting Depth | 4.9" |
MPN | 4224 011 2801 US |
Diamond Blade Cutting Depths
Blade Diameter | Max. Cutting Depth |
9" | 3" |
10" | 3.94" |
12" | 4" |
14" | 5" |
16" | 6" |
Diamond Blade Recommended RPMs
Blade Diameter | Recommended RPM | Max. RPM |
4" | 9072 | 15000 |
4- ½" | 8063 | 13300 |
5" | 7257 | 12000 |
6" | 6048 | 10185 |
7" | 5184 | 8730 |
8" | 4536 | 7640 |
9" | 4032 | 6790 |
10" | 3629 | 6115 |
12" | 3024 | 5095 |
12" High Speed | N/A | 6300 |
14" | 2592 | 4395 |
14" High Speed | N/A | 5400 |
16" | 2268 | 3820 |
16 High Speed | N/A | 4725 |
18" | 2016 | 3395 |
20 | 1814 | 3055 |
22 | 1649 | 2780 |
24" | 1512 | 2550 |
26 | 1396 | 2350 |
28" | 1296 | 2185 |
30 | 1210 | 2040 |
32" | 1134 | 1910 |
36" | 1008 | 1700 |
42" | 864 | 1455 |
48" | 756 | 1275 |
