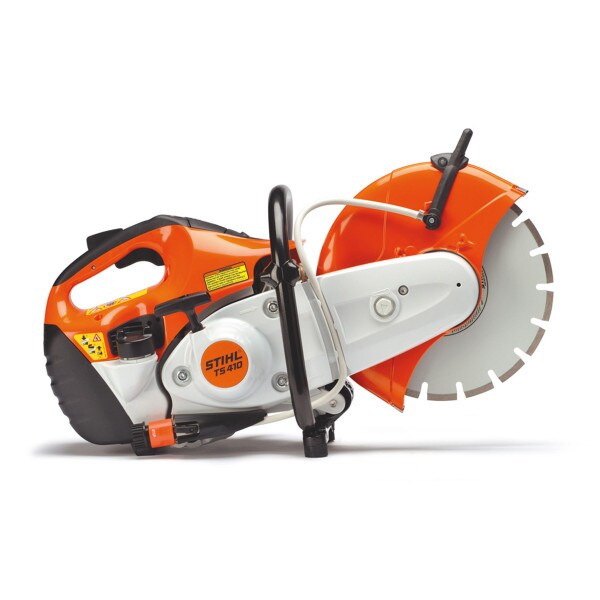

Stihl TS410 12" Cutquik® Cut-Off Saw
The Stihl TS 410 is a lean, clean, cut-off machine that’s easy to use and easier to maintain. Just squeeze the trigger and watch its 12” cutting wheel grind through iron, steel, concrete, and expectations. Part of the STIHL Cutquik® series, this model features advanced filter technology that automatically handles daily maintenance. Its revolutionary X2 air filtration removes 99.96% of particles from air entering the carburetor and engine, making its onboard filters virtually maintenance-free. Good thing we included an anti-vibration system to maximize comfort – a feature you’ll appreciate after a full day of cutting.
For more information on Stihl equipment visit www.stihlusa.com/information.
For more information on Stihl equipment visit www.stihlusa.com/information.
PRODUCT SPECS | |
|---|---|
| Engine Power | 4.4 HP |
| Max Spindle Speed | 5350 RPM |
| Fuel Capacity | 24 oz |
| Max Cutting Depth | 3.9" |
| Max Blade Size | 12" |
| MPN | 4238 011 2823 US |
Diamond Blade Cutting Depths
Blade Diameter | Max. Cutting Depth |
9" | 3" |
10" | 3.94" |
12" | 4" |
14" | 5" |
16" | 6" |
Diamond Blade Recommended RPMs
Blade Diameter | Recommended RPM | Max. RPM |
4" | 9072 | 15000 |
4- ½" | 8063 | 13300 |
5" | 7257 | 12000 |
6" | 6048 | 10185 |
7" | 5184 | 8730 |
8" | 4536 | 7640 |
9" | 4032 | 6790 |
10" | 3629 | 6115 |
12" | 3024 | 5095 |
12" High Speed | N/A | 6300 |
14" | 2592 | 4395 |
14" High Speed | N/A | 5400 |
16" | 2268 | 3820 |
16 High Speed | N/A | 4725 |
18" | 2016 | 3395 |
20 | 1814 | 3055 |
22 | 1649 | 2780 |
24" | 1512 | 2550 |
26 | 1396 | 2350 |
28" | 1296 | 2185 |
30 | 1210 | 2040 |
32" | 1134 | 1910 |
36" | 1008 | 1700 |
42" | 864 | 1455 |
48" | 756 | 1275 |
