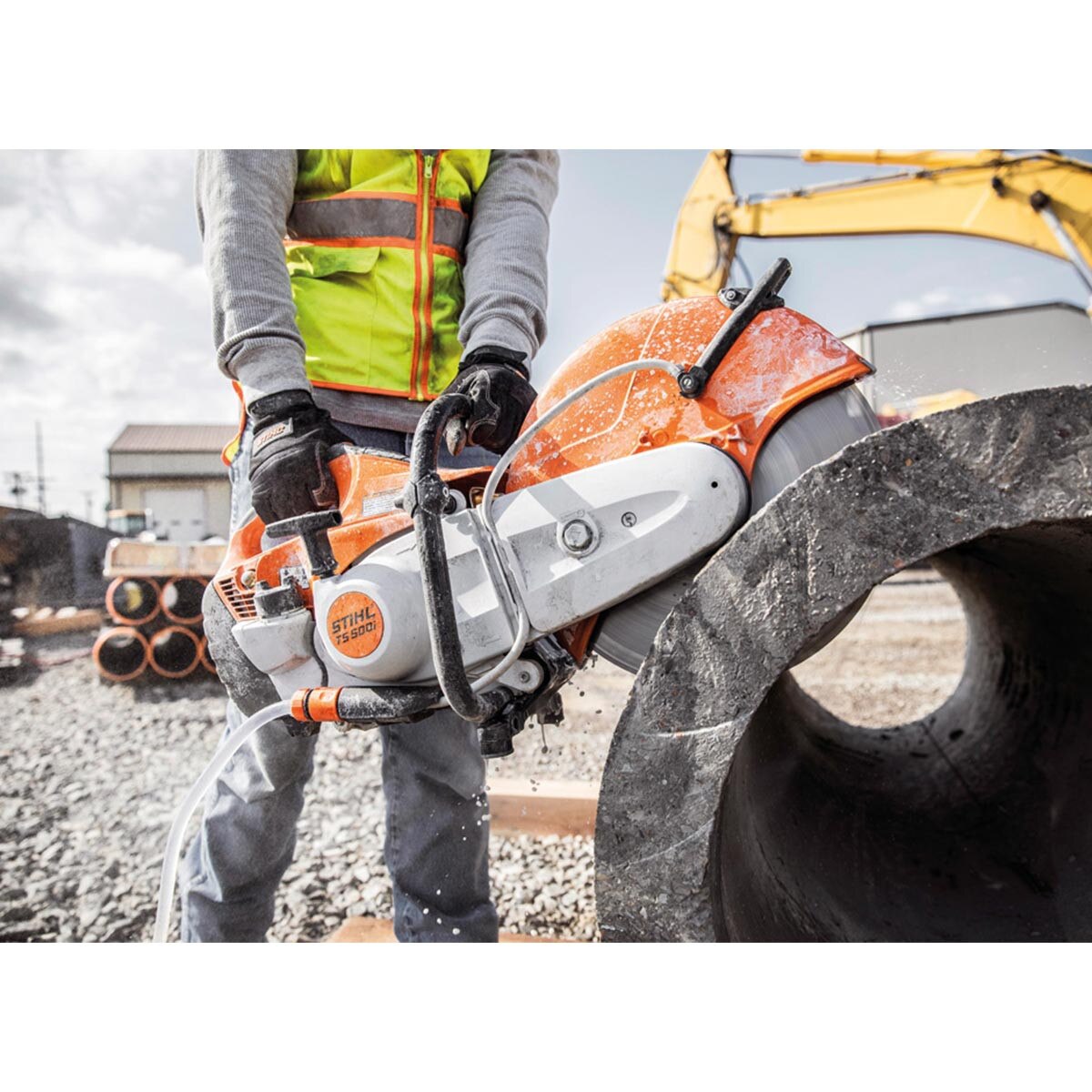

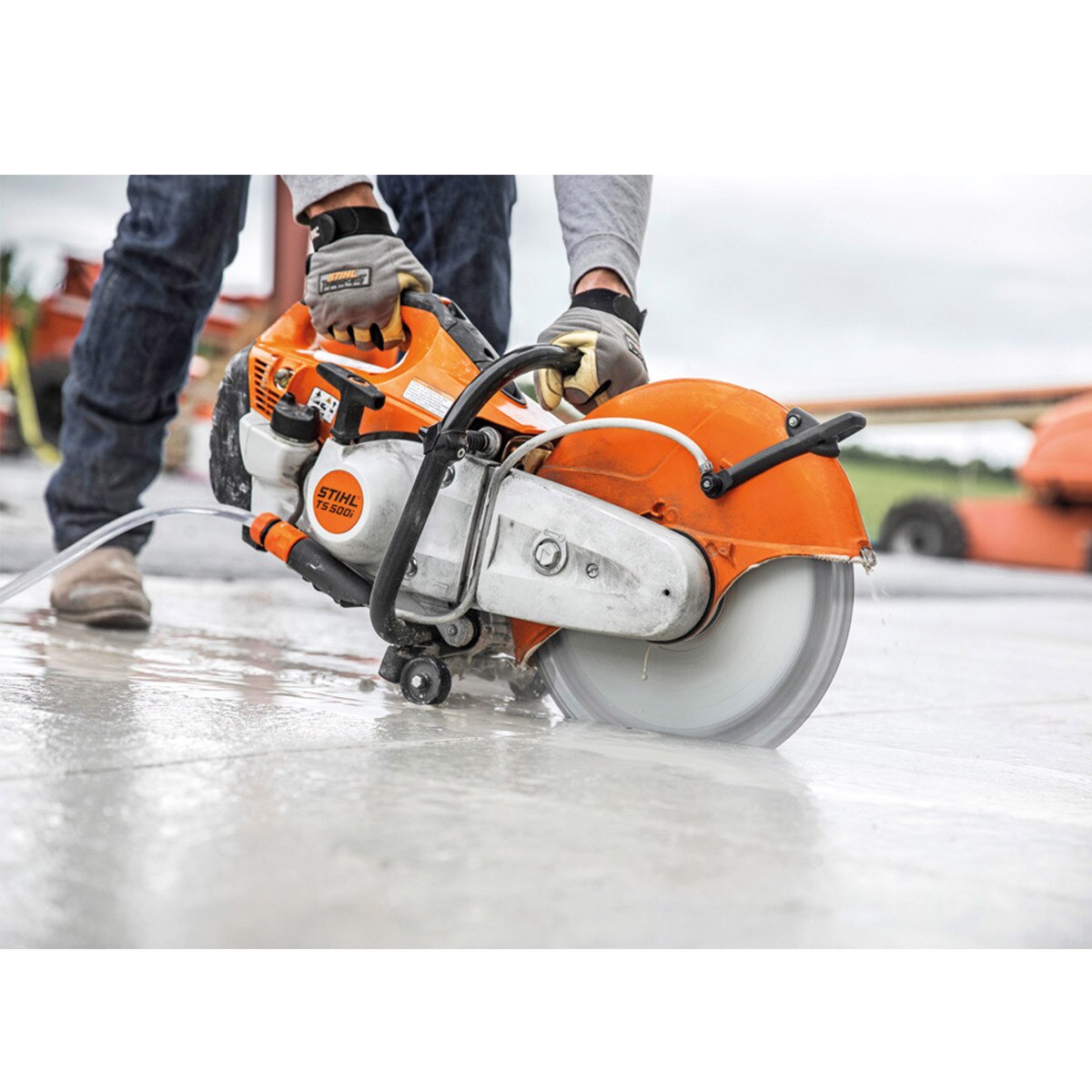

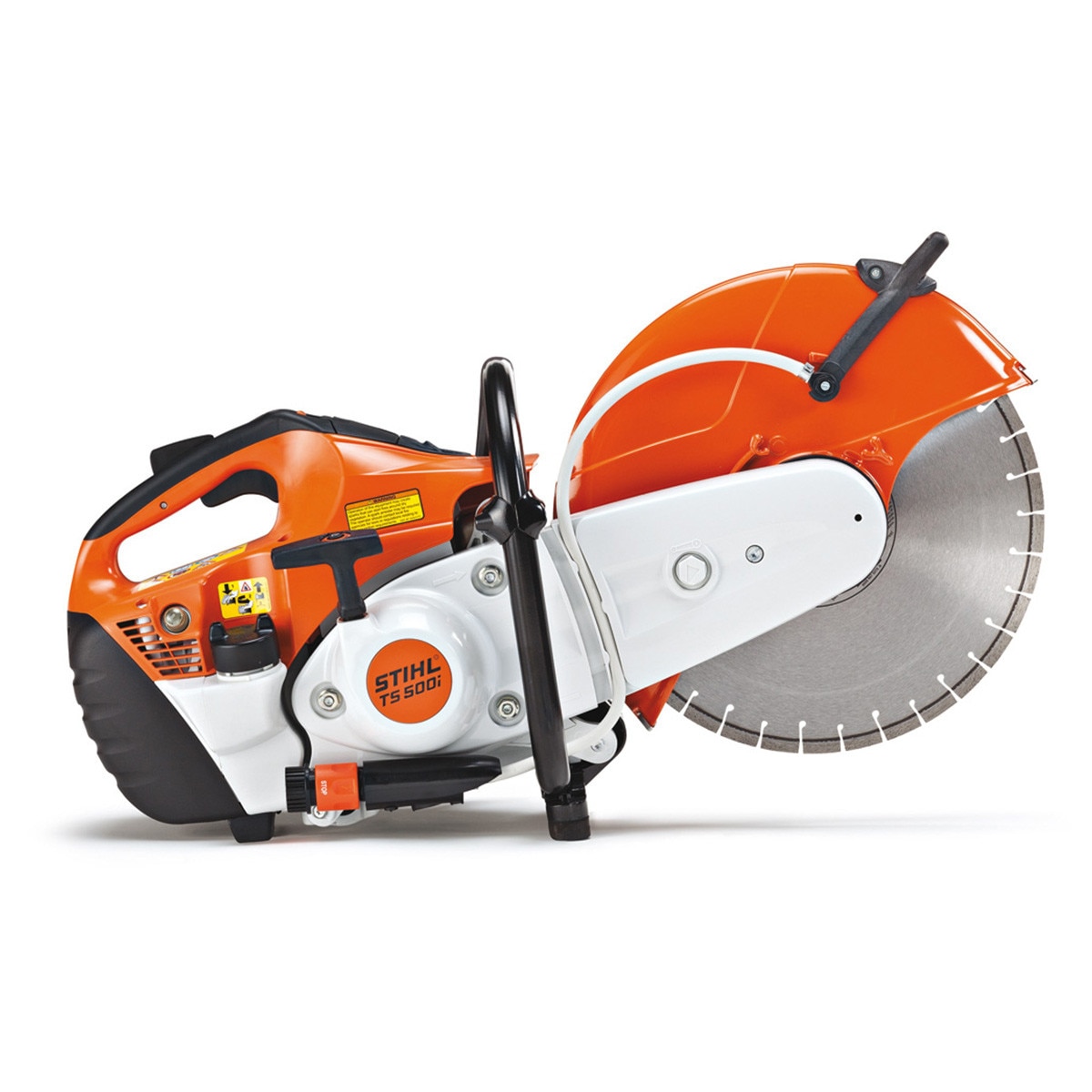

Stihl TS500i 14" Cutquik® Cut-Off Saw
Advanced engine technology provides high performance in the toughest conditions.
STIHL introduces another industry first with the TS 500i STIHL Cutquik® cut-off machine – the first handheld outdoor power tool to offer an electronically controlled fuel-injection system. This system increases power and performance by over 15% while remaining lightweight and well-balanced. The fuel injection system makes starting easier and more reliable by eliminating the choke. Just set the switch to on, prime, and pull.
Lightweight, powerful and fuel-injected, this 14” cut-off machine is designed for superior balance and handling during your toughest jobs. And just like a powerful sports car, you will be impressed with the amazing acceleration of this machine, getting you back to speed faster than you thought possible. The STIHL TS 500i also features a high-efficiency engine with low exhaust emissions and optimal torque throughout its RPM range. Its Electronic Water Control (EWC) allows for easy water flow adjustment while cutting and its X2 air filtration system maintains an incredible 99.96% cleaning efficiency. This machine has it all, so very little can stand in your way.
Key Features
- Electronic Water Control - allows the operator to easily adjust the flow of water while cutting and stop the water flow when the saw is idle.
- Decompression Valve - The decompression valve reduces the compression in the combustion chamber during cranking and helps reduce the effort needed to pull the starter rope.
- Reduced-Emissions Engine Technology - Caring for Nature - The STIHL Inc. “Caring for Nature” seal identifies its powered products that are more environmentally conscious, producing zero or low exhaust emissions. STIHL Inc. defines “low exhaust emissions” as being cleaner than EPA and/or CARB exhaust emission standards.
- X2 Air Filtration System - The X2 Air Filtration System revolutionizes the cut-off machine industry by allowing air filters to last up to a year, based on cutting conditions. Outside air enters the system in a swirling motion, removing 80% of dust particles. This pre-cleaned air is then routed through the primary and secondary air filters before being sent into the engine. The X2 Air Filtration System is virtually maintenance-free and maintains an incredible 99.96% cleaning efficiency.
- Ergonomic Grip - The ergonomic top-handle bar design provides an optimal comfortable grip in any working position.
- Electronically Controlled Fuel Injection System - The fuel injection system makes starting easier and more reliable by eliminating the choke. Just set the switch to on, prime and pull.
- Stihl Elastostart™ - The ElastoStart™ starter handle is a feature of STIHL. It is a starting grip with a built-in shock absorber that helps reduce the effort when pulling on the starter cord. The ElastoStart™ starter grip noticeably reduces the sudden peak forces (compression) normally felt during cranking. The forces that occur at the grip after the first compression stroke are smoothed out.
- Semi-Automatic Belt Tensioning - With consistent semi-automatic re-tensioning, this feature increases the service life of the belts and shaft bearings.
- Bayonet-Style Filler Cap - Includes retainer for easy use, even with gloves on.
- Anti Vibration System - STIHL has developed a system for minimizing the vibration levels of handheld outdoor power equipment. The STIHL anti-vibration system helps reduce operator fatigue and provides a more comfortable working experience.
Key Specifications
Power Source | Gas |
Maximum Cutting Depth | 4.9" |
Maximum Blade Diameter | 14" |
Weight | 21.2 lbs |
Why Choose the TS 500i?
The advanced engine technology provides high performance in the toughest conditions.
Key Takeaways
Electronically Controlled Fuel Injection System | Ergonomic Grip |
X2 Air Filtration System | Electronic Water Control |
Semi-Auto Belt Tensioning | Stihl Elastostart™ |
For more information on Stihl equipment visit www.stihlusa.com/information.
PRODUCT SPECS | |
---|---|
Engine Power | 5.2 HP |
Weight | 22.5 lbs |
Max Spindle Speed | 5,350 RPM |
Maximum Blade Size | 14" |
Maximum Cutting Depth | 4.9" |
MPN | 4250 011 2811 US |
Diamond Blade Cutting Depths
Blade Diameter | Max. Cutting Depth |
9" | 3" |
10" | 3.94" |
12" | 4" |
14" | 5" |
16" | 6" |
Diamond Blade Recommended RPMs
Blade Diameter | Recommended RPM | Max. RPM |
4" | 9072 | 15000 |
4- ½" | 8063 | 13300 |
5" | 7257 | 12000 |
6" | 6048 | 10185 |
7" | 5184 | 8730 |
8" | 4536 | 7640 |
9" | 4032 | 6790 |
10" | 3629 | 6115 |
12" | 3024 | 5095 |
12" High Speed | N/A | 6300 |
14" | 2592 | 4395 |
14" High Speed | N/A | 5400 |
16" | 2268 | 3820 |
16 High Speed | N/A | 4725 |
18" | 2016 | 3395 |
20 | 1814 | 3055 |
22 | 1649 | 2780 |
24" | 1512 | 2550 |
26 | 1396 | 2350 |
28" | 1296 | 2185 |
30 | 1210 | 2040 |
32" | 1134 | 1910 |
36" | 1008 | 1700 |
42" | 864 | 1455 |
48" | 756 | 1275 |
